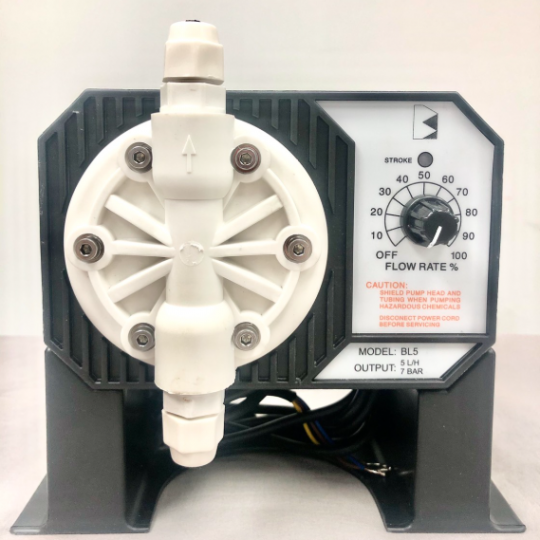

Black Stone Chemical Liquid Metering Pump 5.0 l/h 7 bar BL5-2

Black Stone Chemical Liquid Metering Pump 5.0 l/h 7 bar BL5-2

Black Stone Chemical Liquid Metering Pump 5.0 l/h 7 bar BL5-2

Ứng dụng:

 Black Stone Chemical Liquid Metering Pump  5.0 l/h 7 bar BL5-2

  • Flow Rate: 5.0 liters/hour

  • Pressure: 7 bar

  • Pump Cycle: 120 strokes/minute

  • Pump Housing: Fiber-reinforced polypropylene

  • Materials:

    • Flange: PVDF
    • Diaphragm: PTFE
    • Ball Valve: Glass
    • O-Ring: FPM/FKM
    • Pump Tubing: Polyethylene 5 x 8 mm, 7m length
  • Self-Priming: Maximum height: 1.5 m (5 feet)

  • Power Supply:

    • BL5-1: 110/115 VAC, 50/60Hz
    • BL5-2: 220/240 VAC, 50/60Hz
  • Maximum Power Consumption: Approximately 200 W

  • Protection: IP65

  • Operating Environment:

    • Temperature: 0 to 50°C (32 to 122°F)
    • Humidity: Max 95% (non-condensing)
  • Dimensions: 194 x 165 x 121 mm

  • Weight: Approximately 3 kg
