Rheometer RM 200 CP-4000 PLUS

Rheometer RM 200 CP-4000 PLUS

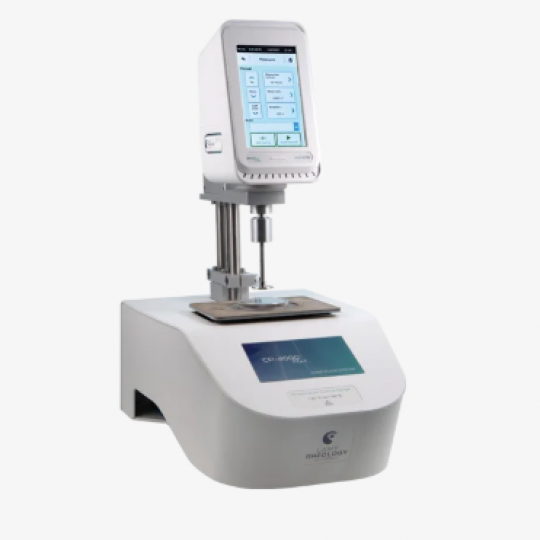

Rheometer
Model: RM 200 CP-4000 PLUS
Manufacturer: Lamy Rheology - France
Contact for quote: 0765 259 545

Ứng dụng:

Rheometer
Model: RM 200 CP-4000 PLUS
Protection cover (Ref. 121019).
Manufacturer: Lamy Rheology - France
Contact for quote: 0765 259 545
Specifications
Type of instrument : Rotating springless rheometer with 7’’ Touch screen
Rotation speeds : Unlimited number of speeds between 0.3 and 1500 rpm
Torque range : From 0.05 to 30 mNm
Temperature : Equipped with a PT100 sensor which indicates temperature between – 50°C to + 300 °C
Accuracy : +/- 1 % of the full scale
Repeatability : +/- 0,2 %
Display : Viscosity (cP/Poises or mPa.s / Pa.s)-Speed – Shear rate – Torque (%-mNm) - Shear stress - Time – Temperature
Compatible accessories :
Barcode reader with stand and cable
Security and confidentiality : An “operator” function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions.
Languages : French/English/Russian/Spanish/Turkish/German/Italian/Portuguese/Korean/Ukrainian
Supply voltage : 90-240 VAC 50/60 Hz
PC connections : Port RS232, USB and Ethernet
Printer connection : USB Host Port - Compatible ; PCL/5
Save your flow curves and calculate your rheological parameters directly without computer (Plastic viscosity, flow limit, Thixotropy, Regression models according to Newton, Bingham, Casson and Ostwald) . Choose your attachment system tailored to your product constraints.
Dimensions and weight : D610 x H700 x W340 mm
Weight: 22 kg
What's included :
1 Temperature control unit.
1 Instructions for use.
1 Calibration certificate and 1 verification report.
