TEXTURE ANALYZER TX-900
-
387
-
0765 259 545

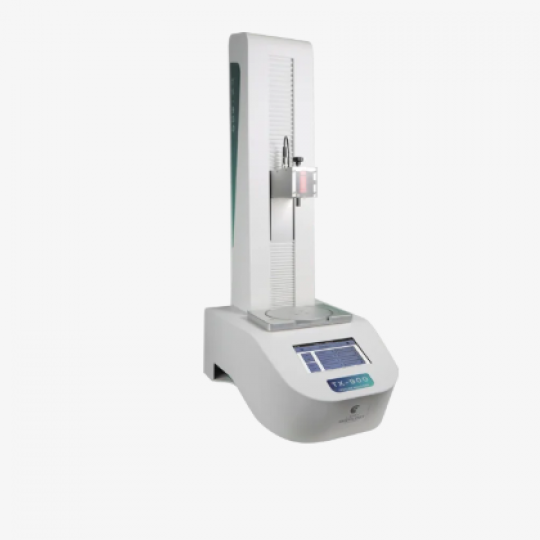

TEXTURE ANALYZER
Model: TX-900
With its wide range of probes and cells, the New TX-900 is the ideal tool for your texture analysis with its 400mm travel distance. Thanks to its touch screen directly displaying the curves, its method programming capability, storage and analysis of measurements, the TX-900 will integrate in laboratory and production area.
Model: TX-900
With its wide range of probes and cells, the New TX-900 is the ideal tool for your texture analysis with its 400mm travel distance. Thanks to its touch screen directly displaying the curves, its method programming capability, storage and analysis of measurements, the TX-900 will integrate in laboratory and production area.
TEXTURE ANALYZER
Model: TX-900
Model: TX-900
Specifications
Type of instrument :
Texture Analyzer operating in Compression and Traction with 7'' Touch screen
Choice of sensors :
10 N (1 kg), resolution 0.001 N (0.1 g) - 20 N (2 kg), resolution 0.001 N (0.1 g) - 50 N (5 kg), resolution 0.001 N (0.1 g) - 100 N (10kg), resolution 0.001 N (0.1 g) - 250 N (25 kg), resolution 0.01 N (1 g) - 500 N (50 kg), Resolution 0.01 N (1 g)
Speed range :
From 0.1 to 10 mm/s +/-0.2 %
Motion :
Height: 400 mm / Resolution: 0.1 mm
Temperature : Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Accuracy :+/- 0.5 % of the full scale
Display : Strength – Speed – Distance – Temperature - Time – Measuring probe – Load sensor - Date/hour - Choice of force units: gram or Newton
Compatible accessories :
Probes
Fixtures
Barcode reader with stand and cable
Zebra printer
Touch screen protector
Calibration Kit: 10-20N (Ref.150060) ; 50-100-250N
(Ref.150070) ; 500N (Ref.150080).
RheoTex software
Load sensor: 10N (Ref : N150010) ; 20N (Ref : N150020) ;
50N (Ref : N150050) ; 100N (Ref : N150100) ; 250N (Ref : N150250) ;
500N (Ref : N150500).
Type of instrument :
Texture Analyzer operating in Compression and Traction with 7'' Touch screen
Choice of sensors :
10 N (1 kg), resolution 0.001 N (0.1 g) - 20 N (2 kg), resolution 0.001 N (0.1 g) - 50 N (5 kg), resolution 0.001 N (0.1 g) - 100 N (10kg), resolution 0.001 N (0.1 g) - 250 N (25 kg), resolution 0.01 N (1 g) - 500 N (50 kg), Resolution 0.01 N (1 g)
Speed range :
From 0.1 to 10 mm/s +/-0.2 %
Motion :
Height: 400 mm / Resolution: 0.1 mm
Temperature : Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C
Accuracy :+/- 0.5 % of the full scale
Display : Strength – Speed – Distance – Temperature - Time – Measuring probe – Load sensor - Date/hour - Choice of force units: gram or Newton
Compatible accessories :
Probes
Fixtures
Barcode reader with stand and cable
Zebra printer
Touch screen protector
Calibration Kit: 10-20N (Ref.150060) ; 50-100-250N
(Ref.150070) ; 500N (Ref.150080).
RheoTex software
Load sensor: 10N (Ref : N150010) ; 20N (Ref : N150020) ;
50N (Ref : N150050) ; 100N (Ref : N150100) ; 250N (Ref : N150250) ;
500N (Ref : N150500).
Security and confidentiality :
An «operator» function allows you to enter a username for your
instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement
conditions.
An «operator» function allows you to enter a username for your
instrument. This user must then be identified using a 4-digit code.
There is also a protected mode that locks your measurement
conditions.
Languages : French/English/Russian/Turkish/German/Italian/Portuguese/Korean/Ukrainian
Compatible measuring systems :
All probes and cell
Compatible measuring systems :
All probes and cell
Supply voltage :90-240 VAC 50/60 Hz
PC connections : RS232 Port and USB
Printer connection : USB Host Port - Compatible
PCL/5
Integrated adjustable turntable: diam. 160 mm. Table for attaching
inserts: 120 x 220 mm. Available Operating Modes: Compression
– Relaxation –Traction – TPA Cycle – Penetrometry and relative
compression mode also. Large selection of probes available
and custom probes can be made with choice of material, shape
and size according to your criteria. The TX-900 has a large 7’’
colour touch screen which allows comfortable use and optimal
viewing of measurements. Storage of your measuring
methods. Data can be backed up and exported using a USB key.
External control thanks to the optional software.
Dimensions and weight : D610 x W340 x H970 mm
Weight: 27 kg
PC connections : RS232 Port and USB
Printer connection : USB Host Port - Compatible
PCL/5
Integrated adjustable turntable: diam. 160 mm. Table for attaching
inserts: 120 x 220 mm. Available Operating Modes: Compression
– Relaxation –Traction – TPA Cycle – Penetrometry and relative
compression mode also. Large selection of probes available
and custom probes can be made with choice of material, shape
and size according to your criteria. The TX-900 has a large 7’’
colour touch screen which allows comfortable use and optimal
viewing of measurements. Storage of your measuring
methods. Data can be backed up and exported using a USB key.
External control thanks to the optional software.
Dimensions and weight : D610 x W340 x H970 mm
Weight: 27 kg
