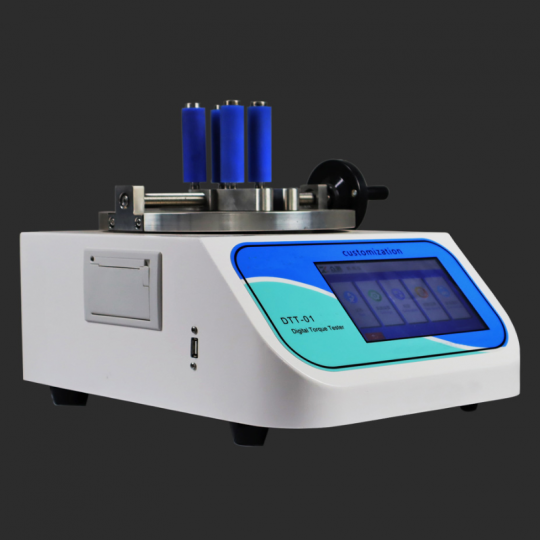

Digital Torque Tester DTT-01

Test Principle The specimen is clamped on a fixed plate to open or lock the specimen manually, andthetorque applied to the specimen is collected by a sensor connected to the fixed platetoobtainthe opening or locking force of the specimen.

- Applications:

+ Basic Application:

Bottle Package: Open and lock force test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles

+ Flexible Tube Package: Open and lock force test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish

- Extended Application :

+ Application & Removal Torque of Screw Nut: Open and lock force test of the screws

+VacuumFlask andVacuumCup: Open and lockforce test of thecaps of vacuumflasks and vacuumcups

- Technical Specifications:

- Specifications:

- Load Cell Capacity: 20 N·m（Standard）

40 N·m, 50 N·m (Optional)

- Accuracy: 1% FS

- Resolution : 0.001 N·m

- Clamp Range : Φ5 mm~Φ180 mm (Diameter)

- Statistical Analysis Allowance : 1~50000

- Test Mode Manual Instrument Dimension :310 mm (L) × 390 mm (W) × 270mm(H)

- Power Supply : AC 220V 50Hz /120V 60Hz

- Net Weight : 20 kg
