Digital Micrometers M5 Series
-
166
-
0765 259 545

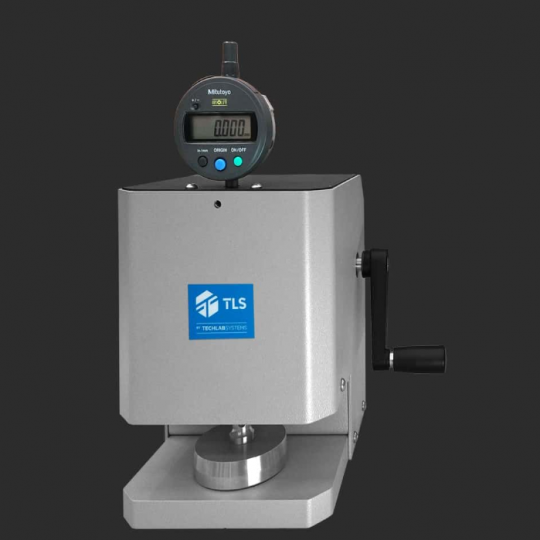

Digital Micrometers M5 Series
- Operated manually with a convenient rotating handle.
- Digital display with reset function to zero.
- Sturdy and user-friendly design.
- Probe area: 2 cm² / 10 cm² (depending on model).
- Reading resolution: ± 0.01 / ± 0.001 mm (depending on model).
- Measurement range: 0 to 10 mm (Paper) – 0 to 15 mm (Cardboard).
- Probe pressure on sample according to corresponding standards.
- Compatible with the T-LAB Laboratory Management System.
- CE marked.
- Operated manually with a convenient rotating handle.
- Digital display with reset function to zero.
- Sturdy and user-friendly design.
- Probe area: 2 cm² / 10 cm² (depending on model).
- Reading resolution: ± 0.01 / ± 0.001 mm (depending on model).
- Measurement range: 0 to 10 mm (Paper) – 0 to 15 mm (Cardboard).
- Probe pressure on sample according to corresponding standards.
- Compatible with the T-LAB Laboratory Management System.
- CE marked.
Digital Micrometers M5 Series
| Model | Probe Area (cm²) | Reading Resolution (mm) | Measurement Range (mm) | Probe Pressure on Sample (KPa, Kg/cm²) | Applicable Standards | Dimensions (W x D x H) (mm) | Dead Weight (kg) |
|---|---|---|---|---|---|---|---|
| M5-P2 (Paper) | 2 | ±0.01 | 0-10 | 100 kPa - 1 kg/cm² | ISO | 145 x 250 x 300 | 2 |
| M5T-P2 (Paper) | 2 | ±0.01 | 0-10 | 50 kPa - 0.5 kg/cm² | TAPPI | 145 x 250 x 300 | 1 |
| M5-P3 (Paper) | 2 | ±0.001 | 0-10 | 100 kPa - 1 kg/cm² | ISO | 145 x 250 x 300 | 2 |
| M5T-P3 (Paper) | 2 | ±0.001 | 0-10 | 50 kPa - 0.5 kg/cm² | TAPPI | 145 x 250 x 300 | 1 |
| M5-T3 (Tissue) | 10 | ±0.001 | 0-10 | 2 kPa (20 g/cm²) | ISO | 145 x 250 x 310 | 0.2 |
| M5-CO (Carton) | 10 | ±0.01 | 0-15 | 20 kPa (200 g/cm²) | ISO | 145 x 250 x 310 | 2 |
| M5-CO3 (Carton) | 10 | ±0.001 | 0-15 | 20 kPa (200 g/cm²) | ISO | 145 x 250 x 310 | 2 |
Product Similar
Pulp Disintegrator PD-10
- Compact and sturdy.
- Electronic components are protected and located at the top of the device.
- Safety mechanism with an additional stop button.
- Tilted head and easy to clean.
- Preselection of revolutions via digital display.
- Speed: 2,975 ± 25 rpm.
- High-performance motor.
- Disintegration vessel made of stainless steel.
- Disintegration vessel capacity: 2 liters.
- Digital display.
- Easy to use and highly convenient.
- CE marked.
- Standards: ISO 5263, NF Q 50002, PAPTAC C.6, SCAN C 18/M2, TAPPI T205, UNE 5263-3:2005
0765 259 545
Somerville Fractionator SF-10
PAPTAC C.11P, TAPPI T275 , TAPPI UM 242.
0765 259 545
MiniVAL Carton Compression Tester
Standard : UNE 137001 - DIN UNE EN ISO 12048 - DIN UNE EN ISO 16495 - ASTM D 642 - ASTM D2659-16, ASTM D 4169, ASTM D 4577 - ASTM D 7030 - DIN 55440-1 - TAPPI T804 - FEFCO 50 - 49 CFR 178.606 - ISTA Series…
0765 259 545
Digital Torque Tester DTT-01
- Standards : ASTM D2063, ASTM D3198, ASTM D3474
- Description
DTT-01 Digital Torque Tester is one professional testing instrument for determination of application torque and removal torque of bottle caps.
0765 259 545
Compresometro de Muestras CDM-5
Standard: ISO 13820
- ECT test : APPITA/AS 1301.444s, DIN EN ISO 3037, FEFCO 8, ISO 13821, SCAN P33, TAPPI T 811, TAPPI T 823, TAPPI T 838, TAPPI T 839
- FCT test : APPITA/AS 1301.429s, DIN EN ISO 3035, FEFCO No. 6, SCAN P32, TAPPI T 825
- RCT test : APPITA/AS 1301.407s, ISO 12192, SCAN P34, TAPPI T 822
- CMT test : APPITA/AS 1301.434s, ISO 7263, SCAN P27, TAPPI T809
- CCT test : SCAN P42, TAPPI T 843, UNE ISO 16945
- PAT test : APPITA/AS 1301.430s, FEFCO No. 11, TAPPI T 821
0765 259 545
Applications
Paper. Folding carton. Corrugated board. Plastic film.Flexible packaging.
Description
Electromechanical one column material testing machine designed to perform tensile, compression, bending, shearing, peeling test of very light materials up to 1 kN.
0765 259 545
