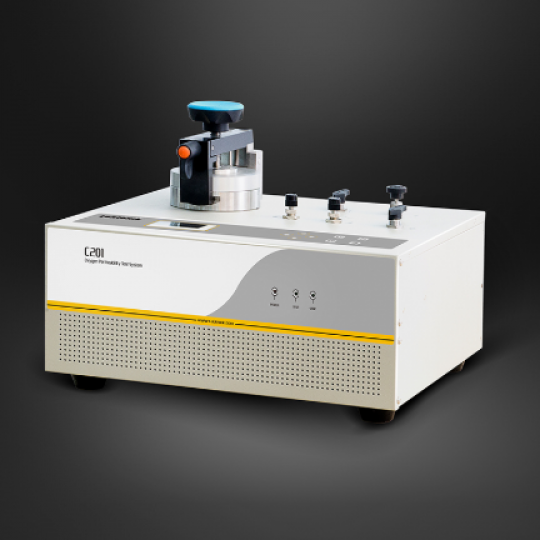

C201B Oxygen Transmission Rate Test System

- Equipped with Labthink self-developed coulometric sensor conforming to ASTM D3985, intrinsic standard and no calibration is required
- Support temperature control to satisfy tests under different conditions (optional)
- Built-in high-quality stainless steel test cell with better sealing performance
- Imported manual isolation valve and flow regulator are adopted for better sealing performance and lower failure rate
- Industrial computer appearance design, small size and fast cooling
- Reference film is provided for quick calibration
- The system adopts single-chip microcomputer control and can run independently
- The test report can be exported in common formats such as EXCEL and PDF
- Support micro printer, automatically print test data (optional)
- Equipped with RS232 data interface, which can be connected to computer software for curve analysis, data storage, report printing, etc. (optional)
- The gas purifier independently developed by Labthink can remove trace oxygen in nitrogen and provide oxygen-free carrier gas (optional).
- Standard ASTM D3985、ASTM F1307、GB/T 19789、GB/T 31354、DIN 53380-3、JIS K7126-2-B、YBB 00082003-2015
