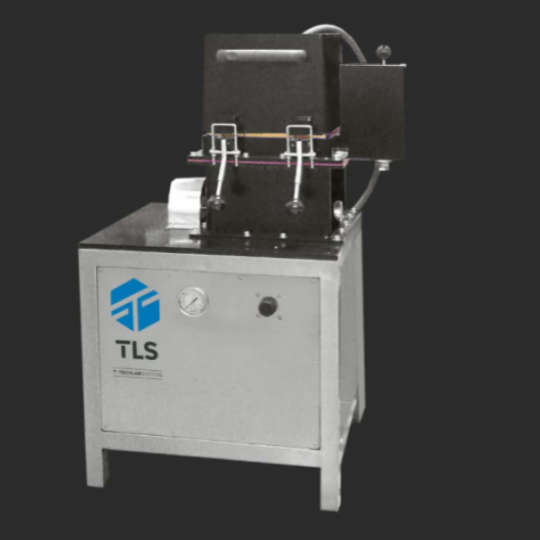

Somerville Fractionator SF-10

Somerville Fractionator SF-10

1. Pneumatic connection: Yes
2. Computer connection: No computer connection
3. Width/Diameter: 70 cm
4. Depth: 60 cm
5. Height: 110 cm
6. Weight: 40 kg
7. Sturdy design.
8. Safe to use.
9. Easy to operate.
10. Rectangular brass slotted screen: 305 x 254 mm.
11. Screen slot dimensions: Length 45 mm, width 0.15 mm ± 0.05 mm/-0.01 mm.
12. Number of slots: 756 (divided into 6 columns, each with 126 slots).
13. Rubber membrane displacement: 3.2 ± 0.1 mm per eccentric movement at a speed of 690-700 rpm.
14. Water flow rate: Controlled water flow through nozzles located in the center of the filter screen at a rate of 8.6 liters/min and 1.23 kg/cm².
15. CE marked.
