Martindale Fabric Abrasion Tester GT-C13B
-
1940
-
0765 259 545

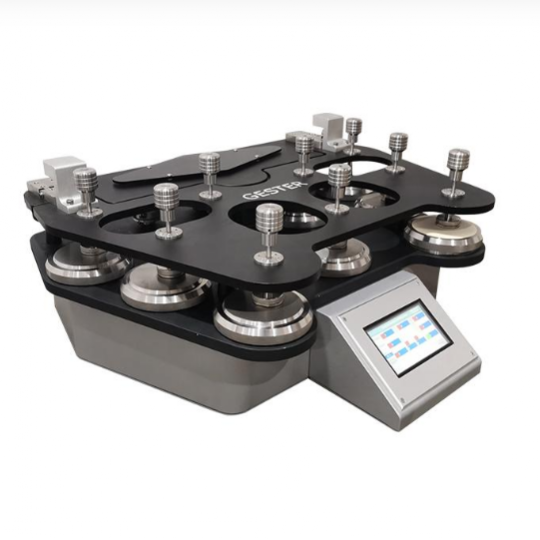

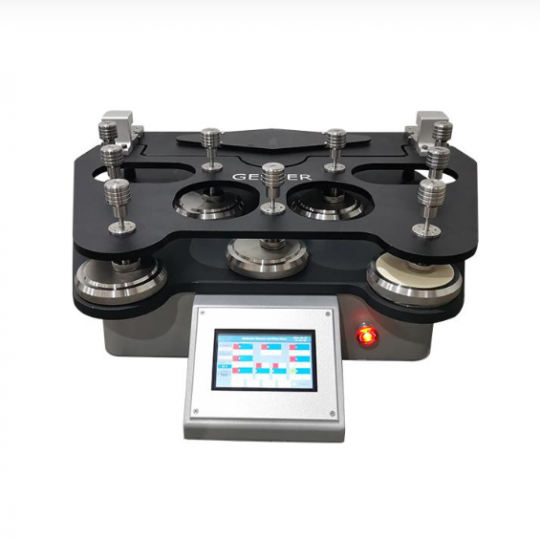

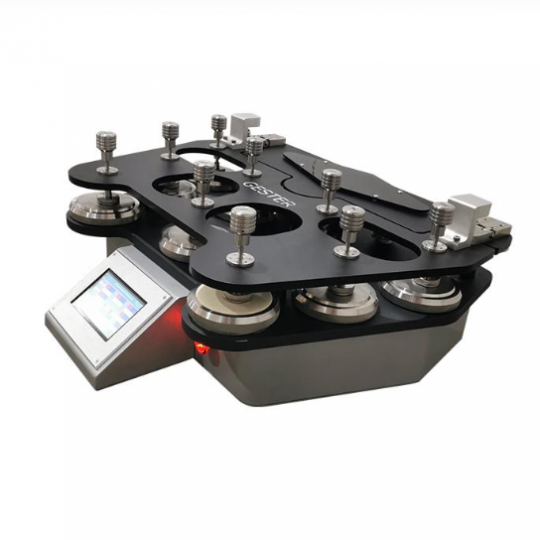

Martindale Fabric Abrasion Tester
Model: GT-C13B
Brand : Gester - China
Application:
- GESTER Martindale Fabric Abrasion and Pilling Tester - the ultimate solution for determining the abrasion and pilling resistance of a wide variety of textile constructions. This advanced testing equipment is designed to accurately measure the amount of wear, or pilling, that occurs when a sample is rubbed against a known abrasive under low pressure in continuously varying directions.

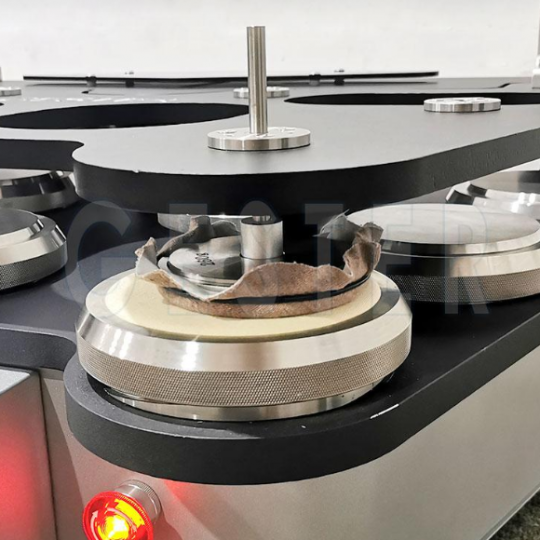

- The Martindale Abrasion and Pilling Tester has 4, 6, 8, 9 optional working positions, making it a versatile and efficient tool for a variety of testing needs. Counting methods include counting up and counting down for added flexibility. The tester's unique design also allows for easy removal of individual sample holders for inspection without lifting the top motion plate.
Model: GT-C13B
Brand : Gester - China
Application:
- GESTER Martindale Fabric Abrasion and Pilling Tester - the ultimate solution for determining the abrasion and pilling resistance of a wide variety of textile constructions. This advanced testing equipment is designed to accurately measure the amount of wear, or pilling, that occurs when a sample is rubbed against a known abrasive under low pressure in continuously varying directions.
- The Martindale Abrasion and Pilling Tester has 4, 6, 8, 9 optional working positions, making it a versatile and efficient tool for a variety of testing needs. Counting methods include counting up and counting down for added flexibility. The tester's unique design also allows for easy removal of individual sample holders for inspection without lifting the top motion plate.
Martindale Fabric Abrasion Tester
Model: GT-C13B
Brand : Gester - China
Model: GT-C13B
Brand : Gester - China
|
martindale rub test standards:
Abrasion: GB/T 21196.2, GB/T 13775, ISO 12947, ASTM D4966, IWS TM 112, M﹠S P19, Next 18, SN 198529, TWC 112, JIS L1096, ( ISO17076-2 ball plate method ,optional)
Pilling: GB/T 4802.2, ISO12945-2, ASTM D4970, IWS TM 196, M﹠S P17, Next TM26, SN 198525
|
Martindale Pilling Tester Key Specifications
|
Model
|
GT-C13B-4
|
GT-C13B-6
|
GT-C13B-8
|
GT-C13B-9
|
|||||||||
|
Working positions
|
4
|
6
|
8
|
9
|
|||||||||
|
Control mode
|
PLC control and touch screen display
|
||||||||||||
|
Counter range
|
0~999999 times
|
||||||||||||
|
Test pressure
|
Abrasion test
|

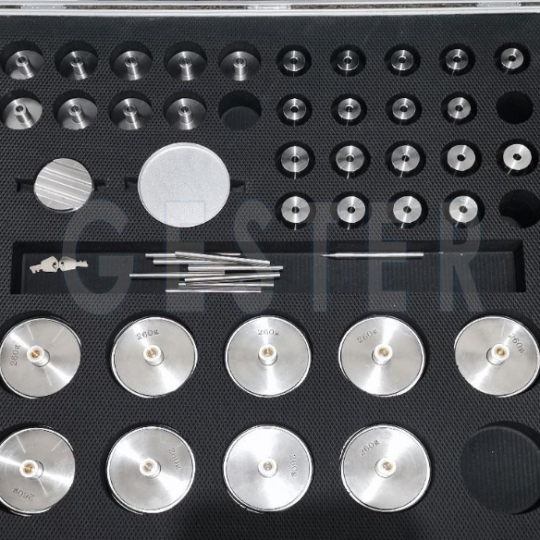

A)Specimen holder: (198 ±2)g
B) Larger loading piece: (597±5)g
C) The sum mass: (795± 7)g , for workwear , upholstery, bed linen and fabrics for technical use ( nominal pressure of 12kpa)
|
|||||||||||
|
A)Specimen holder: (198 ±2)g
B) Smaller loading piece: (397±5)g
C) The sum mass: (595± 7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)
|
|||||||||||||
|
Pilling test
|
A) Stainless steel loading piece: (155 ± 1) g
B) Specimen holder: (260 ± 1)g
C) The sum mass: (415± 2)g
|
||||||||||||
|
Holder effective diameter
|
A) Abrasion Holder: Φ(28.65 ± 0.05)mm
|
||||||||||||
|
B) Pilling Holder: Φ(90 ± 0.10)mm
|
|||||||||||||
|
Rotational speed
|
47.5± 2.5r/min
|
||||||||||||
|
Pressing weight
|
Mass: (2.5 ± 0.5) kg
|
||||||||||||
|
Diameter: Φ(120 ± 10) mm
|
|||||||||||||
|
Power supply
|
AC220V 50/60Hz
|
||||||||||||
|
Dimensions(L x W x H)
|
60×55×41cm
|
88×61×41cm
|
90×62×41cm
|
90×62×41cm
|
|||||||||
|
Weight
|
75kg
|
130kg
|
145kg
|
150kg
|
|||||||||
Application Industry
All kinds of materials can be tested on the Martindale Fabric Abrasion Tester
