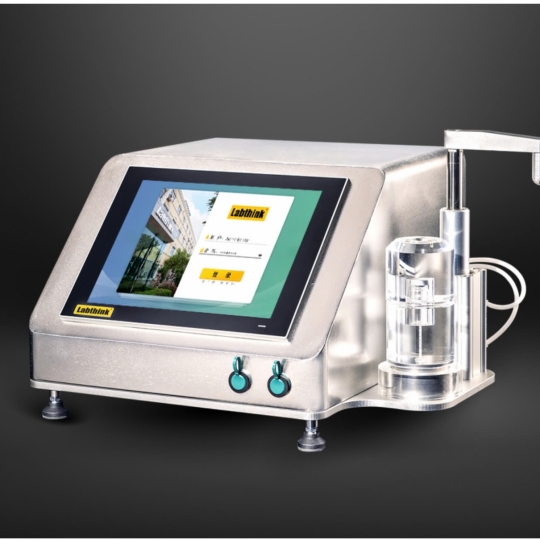

C690M Nondestructive Package Leakage Detector

C690M Nondestructive Package Leakage Detector

C690M Nondestructive Package Leakage Detector
Model : C690M
Labthink - China
C690M Nondestructive Package Leakage Detector is based on the vacuum decay method and pressure decay method, and is designed and manufactured according to ASTM F2338 and other standards. It is professionally suitable for the trace leakage detection of various drug packaging such as vials, ampoule bottles, cartridge bottles, infusion bottle, and prefilled syringes and so on.

Ứng dụng:

C690M Nondestructive Package Leakage Detector
Model : C690M
Labthink - China
Technical Parameters
Table 1: Test Parameters Note2
Parameter\Model
C690M
Testing Range
um(Reference aperture size USP1207)
2~8~great leakage
Detection Lower Limit
um
≤2
Resolution
um
0.1
Repeatability
um
±1
Pressure Range
kPa
-100~0~+100
Extended Functions
21 CFR Part11
Optional
GMP computer system requirements
Optional
Table 2: Technical Specifications
Testing Cell
1 set
Sample Size
≤Φ45 mm×80mmNote3
Sample Quantity
1 piece
Gas Specifications
Compressed Air (Gas source is provided by the user)
Gas Source Pressure
≥ 40.6 PSI / 500 kPa
Port Size
Φ6 mm Polyurethane tube
Dimensions
12” H x 22” W x 15” D (30cm× 56cm× 37cm)
Power
120VAC±10% 60Hz / 220VAC±10% 50Hz(select one from the two)
Net weight
58Lbs (26kg)
Product Configuration
Standard Configuration
Mainframe, embedded tablet computer, software, flow meter, vacuum pump, Φ6 mm polyurethane tube
Customization
Test cell, negative standard reference sample and positive standard reference sample designed according to the sample specifications
Optional Parts
GMP computer system requirements, 21 CFR Part11, air compressor, built-in European vacuum pump , IQ/OQ/PQ documents
