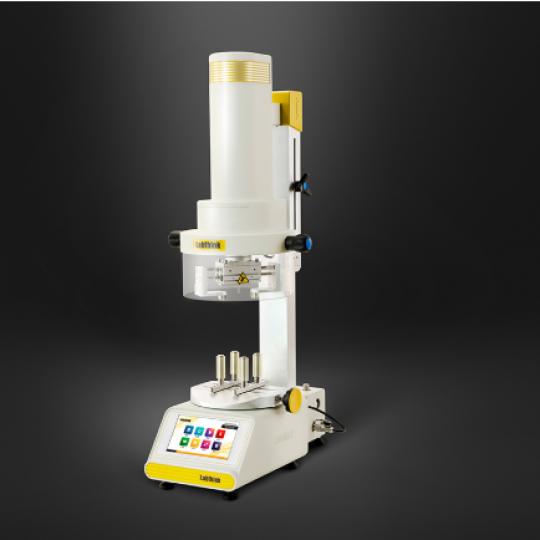

C612M Digital Torque Tester

Specifications
C612M Digital Torque Tester

1. Load Cell Capacity: 5 Nm (Standard), 20 Nm (Optional), 40 Nm (Optional)
2. Accuracy: Indicated Value ±0.5% (10%-100% of Load cell capacity), ±0.05%FS (0%-10% of Load cell capacity)
3. Resolution: 0.0001 Nm
4. Body Clamp Range: Φ5 mm ~ Φ170 mm
5. Cap Clamp Range: Φ10 mm ~ Φ80 mm
6. Bottle Height: 20 mm ~ 400 mm
7. Specimen Clamping and Turning Way: Pneumatic
8. Maximum Auto Removal / Application Torque: 2 Nm (customization available for other specs)
9. Gas Supply: Air (Not in supply scope)
10. Gas Supply Pressure: 0.7 Mpa (101.5psi)
11. Statistical Analysis Allowance: 0 ~ 999
12. Instrument Dimensions: 550 mm (L) × 365 mm (W) × 1150 mm (H)
13. Power Supply: 220VAC±10% 50Hz / 120VAC±10% 60Hz
14. Net Weight: 39 kg
