NIR Moisture Analyzer kb-30

NIR Moisture Analyzer kb-30

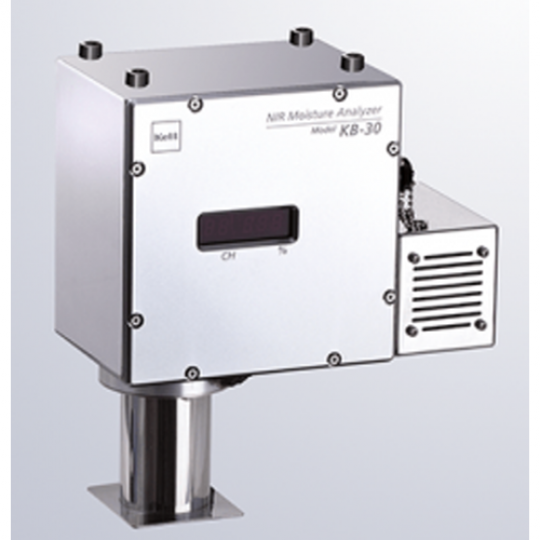

KETT NIR MOISTURE ANALYZER KB-30
Model: NIR KB-30
Manufacturer: Kett
Origin: Japan
KB-30 can be successfully connected to a personal computer, making its main part design simple and realizing a low price.
When necessary, you can also use it alone after all the settings have been completed.
KB-30 includes long-life parts of the test unit.
The electric bulb and the wheel motor can be replaced in a short time and are easily accessible.
KB-30 can use both RS-232C and RS-485 external communication with its internal jumper switch.
It can be connected to 15 sensor heads via RS-485.

Ứng dụng:

KETT NIR MOISTURE ANALYZER KB-30
Model: NIR KB-30
Manufacturer: Kett
Origin: Japan

Technical parameters:
Measurement method Near infrared reflection
Measurement distance 260mm ± 30mm
Measurement diameter ø25mm (260mm)
Light source Tungsten lamp (20000 hours or more)
Display Red 7-segment LED
Number of analysis lines 50
Ambient temperature / humidity 5-35 ° C / 0-80% RH (non-condensing)
External communication RS-485, RS-232C
Power supply AC 100V / 240V (50 / 60Hz)
Power consumption 50VA
Protection IP66
Dimensions and weight 268 (W) × 140 (D) × 306 (H) mm, 7kg
Accessories Power cable, Zero adjustment plate, Screw, etc.
Optional controller KJT-CN2T, PC software, RS-232C cable 3m
