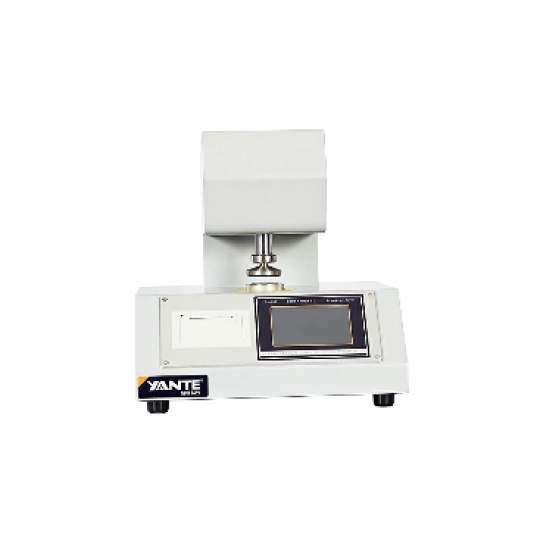

YT-ABST Automatic Smoothness Tester

YT-ABST Automatic Smoothness Tester

Automatic Smoothness Tester
Model: YT-ABST
Yante - China
YT-ABST Automatic smoothness tester is an intelligent paper and cardboardsmoothness performance testing instrument developed according totheworking principle of the Buick Bekk smoothness tester. It is an ideal testingequipment for papermaking, packaging, printing, commodity inspection, scientific research and other departments.
- Application Range: Paper, cardboard and other thin materials
- Standards: GB/T 456 ISO 5627 JJG62

Ứng dụng:

Technical Specifications:

  • Display: 5-inch color touch screen, 800x480 dot matrix
  • Measuring Area: 10±0.05 cm²
  • Measurement Range: (1~99999) seconds, divided into three levels: (1-15) seconds, (15-300) seconds, (300-99999) seconds
  • Contact Pressure: 100±2 kPa
  • Display Accuracy: ≤0.1 seconds (for a measurement time of 1000 seconds)
  • Printing: Built-in thermal printer
  • Communication Interface: RS232
  • Dimensions: 370 (L) × 330 (W) × 390 (H) mm
  • Net Weight: 29 kg
