Model: FKT-200

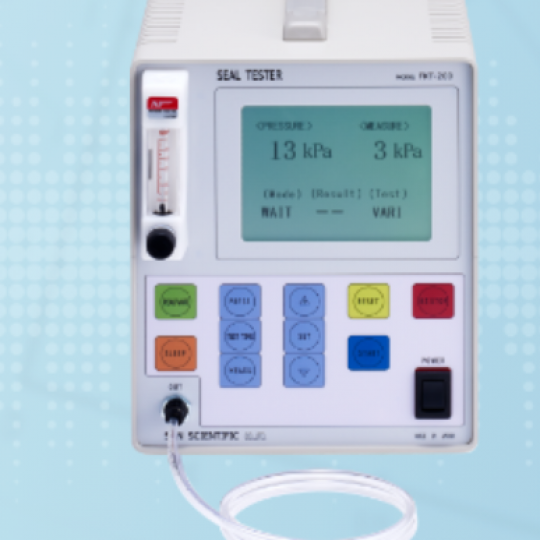

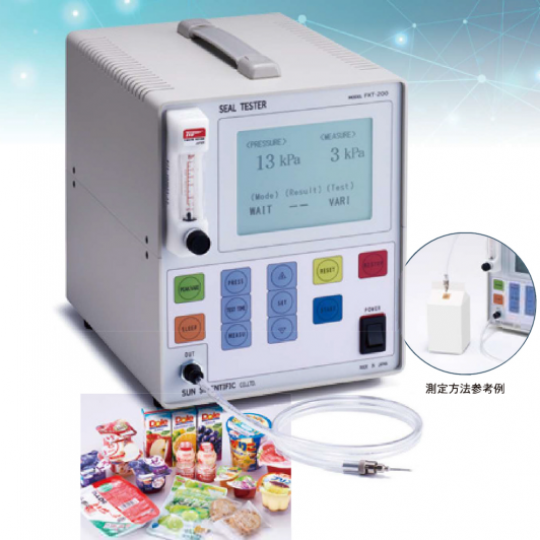

The "Seal Tester FKT-200" enables high-precision and easy measurement of package seal integrity and strength, making it an ideal solution for quality control in a wide range of industries, including food, pharmaceuticals, and cosmetics. By combining seal strength measurement and burst strength testing in a single unit, the FKT-200 streamlines quality control processes and enhances reliability.

Ứng dụng:

The in Package Quality Testing
Model: FKT-200
Applicable Standards & Regulations (Japan)
* Compliant with JIS Z0238: 1998-8 'Test Methods for Heat-Sealed Flexible Packaging Bags and Semi-Rigid Containers'
* Compliant with the Milk Carton Food Sanitation Law
* Compliant with the Ordinance on Standards for Milk and Dairy Products,
Annex 3, (1)-1-b-A Sealing Test (Ordinance No. 52 of the Japanese Ministry of Health, Labour and Welfare, 1951)
* Compliant with 'Food Sanitation Inspection Guidelines' by the Japan Food Sanitation Association (2015)
Product Specifications
Maximum Pressure 70kPa (Built-in Pump), 200kPa (External Pump Connection)
Pressure Setting 0-70kPa (Built-in Pump), 0-200kPa (External Pump Connection)
Pumping Method Built-in air pump
Optional external air connection
Power Supply AC100V 50/60Hz
Dimensions W210×D350×H270(mm)
Weight Approx. 6.5kg
Optional Features By using an external compressor, maximum pressure can be increased to 200kPa.
