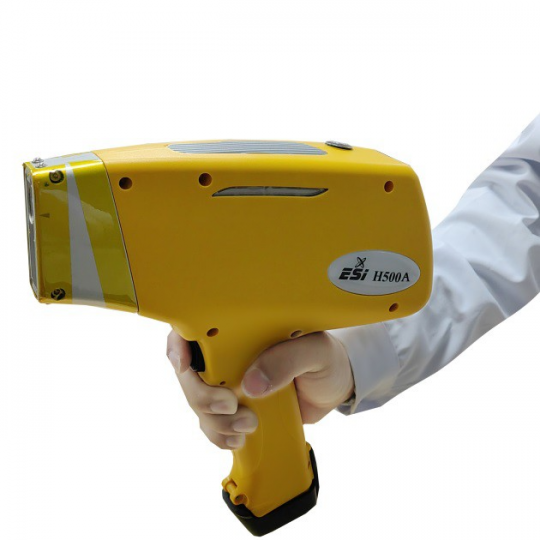

the handheld metal and alloy XRF analyzer H500A

Analysis Method:

• Energy Dispersive X-ray Fluorescence (EDXRF)
• PDA with touchscreen
• CPU: 2G, System Memory: 8G
• Smart analysis
• Automatically selects the test mode based on the sample matrix

Excitation Source: 50KV/200µA – Integrated Ag/Rh/W X-ray tube with high-voltage power supply

Alignment & Filter: Multiple collimators and filters with automatic switching function

Detector: High-resolution silicon detector

Sample Types: Solids, liquids, powders

Detection Limit: 5–500ppm, depending on the element and sample matrix

Analysis Time: 3-60 seconds

Simultaneous Analysis: Displays up to 40 elements at the same time

Display Range: ppm to 99.99%

Safety: Automatic X-ray tube shutdown, Pb-lined device frame, radiation levels meet international safety standards

Power Supply:

• Rechargeable Li-ion battery, standard 6800mAh, providing up to 12 hours of operation per charge
• Universal AC adapter (110/220V) for charging

Temperature: -20ºC to +50ºC

Size: 235 mm x 82 mm x 260 mm

Weight:

• Without battery: 1.35 kg
• With battery: 1.49 kg
