Furnace

Furnace

Furnace

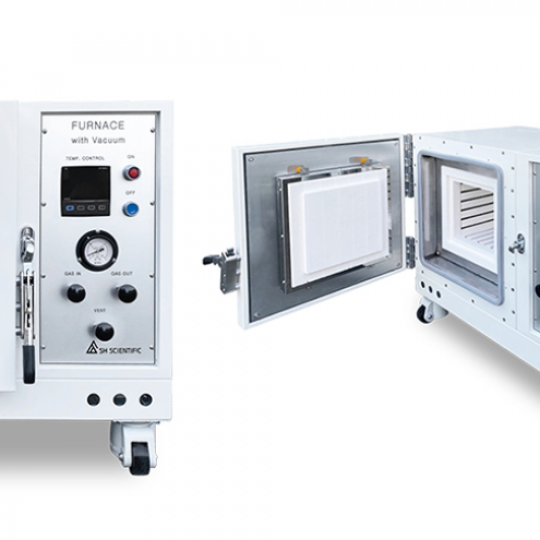

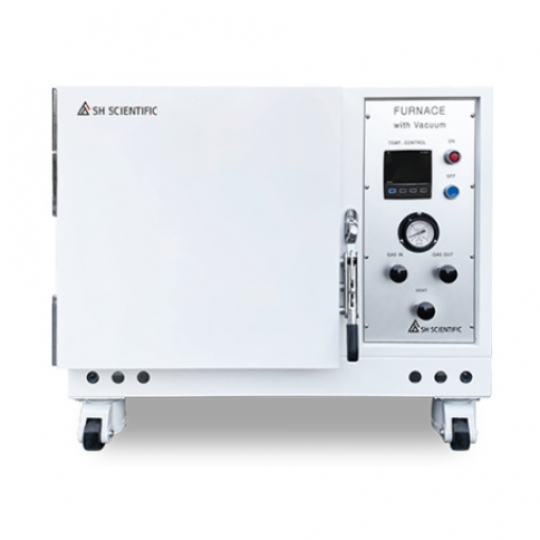

Model SH-FU-31MGV
Max Temp: 1200℃ (2192℉)
Capa: 31 Lit

Ứng dụng:

Furnace
Model    SH-FU-31MGV
Max Temp: 1200℃ (2192℉)

Temp Controller:  Programmable Controller(SP590)
Heater Capa: 6100 W
Capa: 31 Lit
Dimension Internal (W×D×H): 315x315x315mm (12.40x12.40x12.40)
Dimension External (W×D×H): 940x810x820mm (37.01x31.89x32.28)
Material External: Steel Plate with powder heating coated
Heater Element: KANTHAL A-1 (Ceramic heating)
Insulation: Ceramic Board & Wool (Ceramic fiber)
Electrical Requirements 120V, 50/60Hz, 1Φ: N/A
Electrical Requirements 230V, 50/60Hz, 1Φ: 26.5 A
Cat. No.: FU31MGV230
Electrical Requirements 230V, 50/60Hz, 3Φ:  15.1 A
Cat. No. :  FU31MGV230-3
Electrical Requirements 380V, 50/60Hz, 3Φ: 9.1 A
Cat. No. : FU31MGV380-3
