BMC-B1 (Method A) Falling Dart Impact Tester
-
524
-
0765 259 545

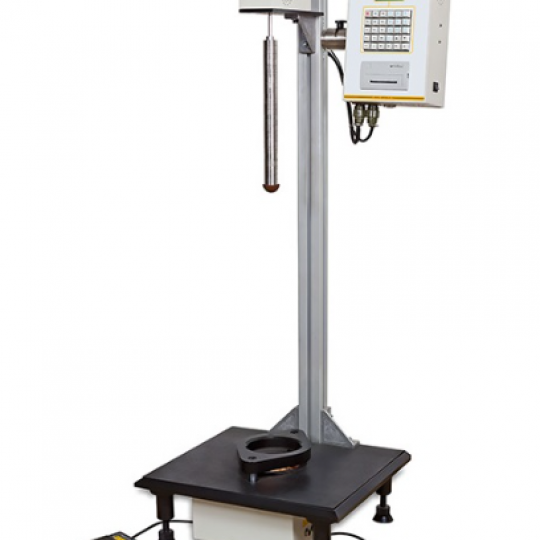

Falling Dart Impact Tester
Model: BMC-B1 (Method A)
This instrument conforms to various national and international standards: ISO 7765-1-1988, ASTM D1709, JIS K7124-1, GB/T 9639.1-2008
Applications:
- Basic Applications:
+ Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food packages and heavy packages.
+ Impact resistance test of aluminum foils and aluminum plastic composite films
+ Impact resistance test of paper and paper board
- Extended Applications:
+ Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
+ Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.
Model: BMC-B1 (Method A)
This instrument conforms to various national and international standards: ISO 7765-1-1988, ASTM D1709, JIS K7124-1, GB/T 9639.1-2008
Applications:
- Basic Applications:
+ Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food packages and heavy packages.
+ Impact resistance test of aluminum foils and aluminum plastic composite films
+ Impact resistance test of paper and paper board
- Extended Applications:
+ Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
+ Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.
Falling Dart Impact Tester
Model: BMC-B1 (Method A)
This instrument conforms to various national and international standards: ISO 7765-1-1988, ASTM D1709, JIS K7124-1, GB/T 9639.1-2008
Applications:
- Basic Applications:
+ Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food packages and heavy packages.
+ Impact resistance test of aluminum foils and aluminum plastic composite films
+ Impact resistance test of paper and paper board
- Extended Applications:
+ Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
+ Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.
Technical Specifications:
- Test Method: Method A
- Test Range Method A:50~2000 g
- Accuracy: 0.1 g (0.1J)
- Specimen Clamp: Pneumatic Clamp
- Gas Supply Pressure: 0.6 MPa (outside of supply scope)
- Port Size: Φ8 mm PU Tubing
- Specimen Size: >150 mm x150 mm
- Power Supply: 220VAC 50Hz / 120VAC 60Hz
- Net Weight: 70 kg
Model: BMC-B1 (Method A)
This instrument conforms to various national and international standards: ISO 7765-1-1988, ASTM D1709, JIS K7124-1, GB/T 9639.1-2008
Applications:
- Basic Applications:
+ Impact resistance test of plastic films, sheets and composite films e.g. PE preservative films, wrapping films, PET sheets and other food packages and heavy packages.
+ Impact resistance test of aluminum foils and aluminum plastic composite films
+ Impact resistance test of paper and paper board
- Extended Applications:
+ Test the resistance of the specimen against the falling ball. Mount the specimen on specific clamp for falling ball impact test and select falling ball of certain weight for the impact test. Check the status of the specimen and determine the impact resistance of the specimen
+ Impact test of shoulder lining. Mount the shoulder lining specimen to the specified clamp and select falling dart of certain weight for impact test. Check the status of the specimen and determine the impact resistance of the shoulder lining specimen.
Technical Specifications:
- Test Method: Method A
- Test Range Method A:50~2000 g
- Accuracy: 0.1 g (0.1J)
- Specimen Clamp: Pneumatic Clamp
- Gas Supply Pressure: 0.6 MPa (outside of supply scope)
- Port Size: Φ8 mm PU Tubing
- Specimen Size: >150 mm x150 mm
- Power Supply: 220VAC 50Hz / 120VAC 60Hz
- Net Weight: 70 kg
Product Similar
C403H Oxygen /Water Vapor Transmission Rate Test System
Model: C403H
Labthink - China
C403H Oxygen /Water Vapor Transmission Rate Test System is based on the testing principle of Coulometric oxygen sensor and infrared water vapor sensor. It is designed and manufactured according to ASTM D3985、ASTM F1249，ISO 15106-2 and other relevant standards to provide high precision and high efficiency oxygen and water vapor transmission rate tests for high and medium gas barrier materials. It is suitable for testing the oxygen and water vapor transmission performance of films, sheets and related materials in the fields of food, medicine, medical devices, daily chemicals, photovoltaic, electronic and many others.
0765 259 545
C840H Integrated Evaporation Residue Testing System
Model: C840H
Labthink - China
C840H Integrated Evaporation Residue Testing System is designed and produced based on the principle of gravimetric method measurement and testing standards for plastic packaging and chemical reagents, etc. It is suitable for the determinations of evaporation residue of food or pharmaceutical packaging, total migration of food contact or pharmaceutical contact materials or products, and evaporation residue of chemical reagents and purified water.
0765 259 545
C690M Nondestructive Package Leakage Detector
Model : C690M
Labthink - China
C690M Nondestructive Package Leakage Detector is based on the vacuum decay method and pressure decay method, and is designed and manufactured according to ASTM F2338 and other standards. It is professionally suitable for the trace leakage detection of various drug packaging such as vials, ampoule bottles, cartridge bottles, infusion bottle, and prefilled syringes and so on.
0765 259 545
BTY-B3P Gas Permeability Tester
Model: BTY-B3P
BTY-B3P Gas Permeability Tester is based on the differential pressure method, and is professionally applicable to the determination of gas permeability of battery diaphragms, breathable films and other relative polymer products.
0765 259 545
C180M Air Permeability Tester
Model: C180M
Manufacturer : Labthink - China
C180M Air Permeability Tester is based on the principle of differential pressure method and is professionally suitable for air permeability tests of cigarette papers, filter plug wrap, filter joining paper and materials with an oriented permeable zone.
Reference Standards
ISO 2965, YC/T172, GB/T 12655, and JJG (Tobacco) -1998
0765 259 545
- Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
- The instrument is heated through fluid medium, which could provide the stable test environment
- Automatic timer function to efficiently guarantee the accuracy of test data
- The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface
- Standard clamp wire mesh support could make the test done smoothly
GB/T 13519, ASTM D2732
0765 259 545
