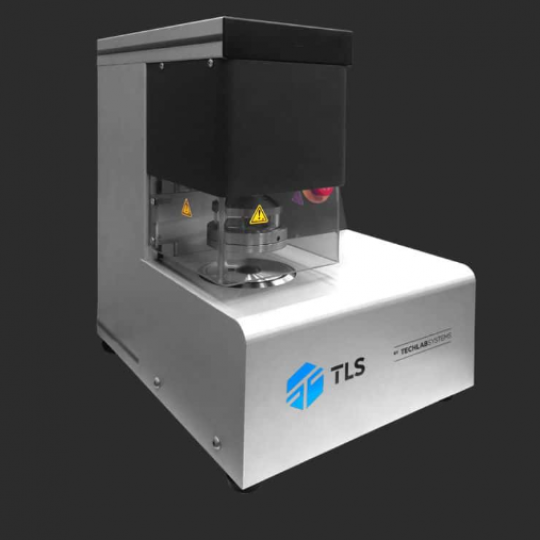

Bursting Strength Tester Mullen BT-10/C100

Bursting Strength Tester Mullen BT-10/C100

Bursting Strength Tester Mullen BT-10/C100
Applications
Paper.
Aluminum sheets.
Compact board.
Corrugated board.
Flexible packaging.
Board boxes.

Ứng dụng:

Standards Paper:
APPITA AS 1301.403, BS 3137, ISO 2758, PAPTAC D.8, SCAN P24, TAPPI T403.

Cardboard Standards:
APPITA AS 1301.438, BS 3137, FEFCO 4 , ISO 2759, PAPTAC D.19, SCAN P25, TAPPI T807, TAPPI T810.

Characteristics

  • BT/10P and BT-10C from 0 to 5000 kPa.
  • BT-10/100C: from 0 to 10000 kPa.
  • Accuracy: <1% of reading between 2 and 100% of the (F.S.D).
  • Configurable pumping flow rate of 170 ± 5 ml/min (corrugated cardboard) and 95 ± 5 ml/min (paper).
  • Sample clamping force of 7000 N maximum, adjustable by pneumatic regulator.
  • Units: kPa, bar, PSI, Kg/cm2
  • Automatic test cycle with sample breakage detection and return to the initial test position
  • 200 cc capacity glycerin reserve tank.
  • RS-232 output interface with converter to USB.
  • Testing Software with basic statistics to perform Burst and BEA tests.
  • Compatible with the T-LAB Laboratory Management System.
  • CE marked.
